Line stringing

Find here all products for line stringing.

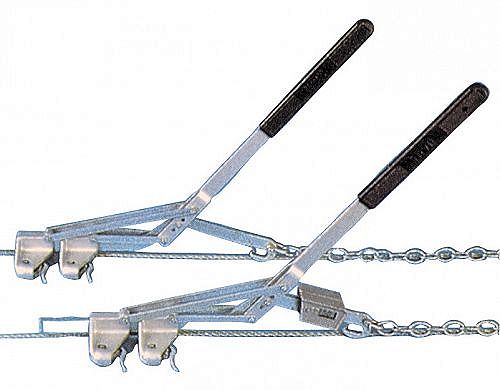

Steel wire tensioners TRA-TIRVIT

Specifications

• Pulling device for cable tensioning.
• WLL : 400-800kg
• Wire diameters : Ø5-18mm
• Weight : 4-6,2kg

DATASHEET

Download and print datasheet (462ko)

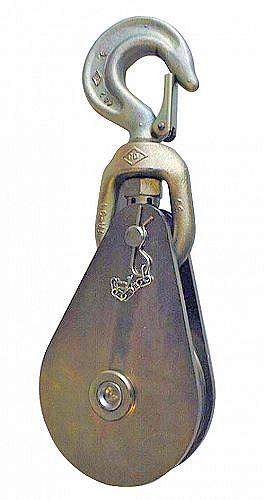

Pulleys TRA-ETC

Specifications

Charlet snatch blocks
• Pulleys with a high level of safetyduring operation.
• WLL : 5T / 8T
• Wire diameters : Ø12-23mm
• Pulley diamters : Ø114-326mm
• Weight : 8-29kg

DATASHEET

Download and print datasheet (462ko)

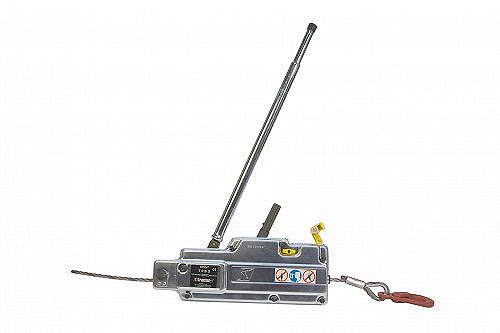

Portable manual hoists TRA-TIRFOR-T-500

Specifications

Manual wire hoists
• Light range hoists
• WLL : 800 / 1600 / 3200kg
• Wire diameters : Ø8,3 / 11,5 / 16,3mm
• Weight : 6,6-24kg

DATASHEET

Download and print datasheet (598ko)

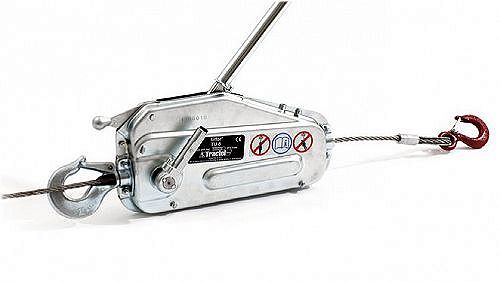

Portable manual hoists TRA-TIRFOR-TU

Specifications

Manual wire hoists
• Robust range hoists
• WLL : 800 / 1600 / 3200kg
• Cable diameters : Ø8,3 / 11,5 / 16,3mm
• Weight : 8,4-24kg

DATASHEET

Download and print datasheet (598ko)

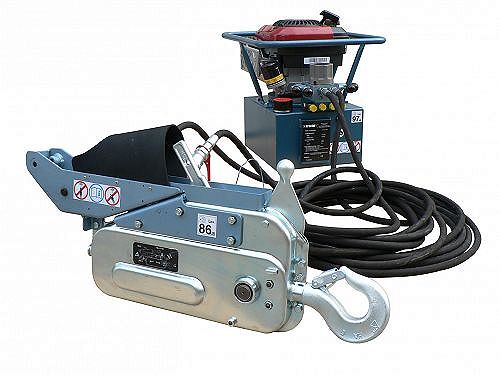

Hydraulic wire hoists TRA-SUPERTIRFOR-TU

Specifications

Hydraulic wire hoists
• WLL : 1600 / 3200kg
• Cable diameters : Ø11,5 / 16,3mm
• Weight : 48kg
• Kit :
- Hydraulic pump with electric or gas engine
- Hoists equipped with a hydraulic cylinder
- Hydraulic hoses

DATASHEET

Download and print datasheet (598ko)

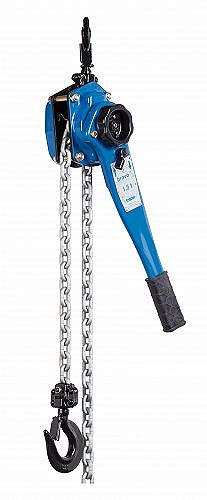

Chain lever hoists TRA-BRAVO

Specifications

Manual chain lever hoists
• Applications : lift and pull
• WLL : 250-6000kg
• Standard length : 1,5m (6m max)
• Chain sizes : 4x12-10x30mm
• Weight : 2-31kg

DATASHEET

Download and print datasheet (695ko)

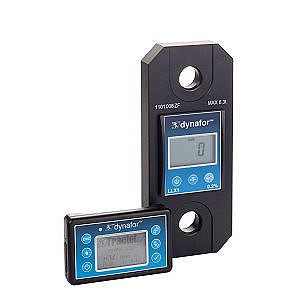

Load dynamometers TRA-LLX

Specifications

Dynamometers DYNAFOR LLX1 and LLX2
• Electronic dynamometers
• WLL : 500-20.000kg
• Precision : 0,2% (0,1% LLX2)
• Weight : 1,1-7kg

DATASHEET

Download and print datasheet (667ko)

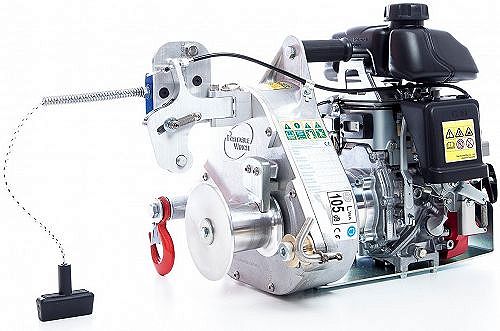

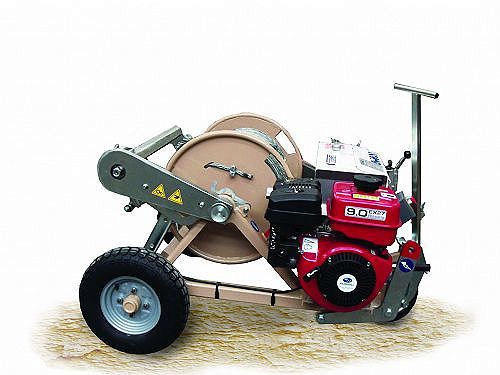

Portable capstan winch PCH1000

Specifications

Portable capstan winch with gas engine
• Gas, single cylinder, 4 cycles, air cooled
• Fuel : unleaded petrol
• Power : 1,6kW (2,2 CH)
• Starter : recoil starter
• Pulling force : 775kg
• Lifting capacity : 250kg
• Pulling speed : 12 to 18 m/min
• Capstan pulley : dia 57mm for 13 mm rope
• L x l x h : 505x366x366mm
• Weight : 17kg

DATASHEET

Download and print datasheet (1231ko)

Hydraulic winch 12kN TESM-AMB200

Specifications

Hydraulic winch
• Gas engine unleaded, 4 cycles, air cooled
• Power : 5,1kW (7CH)
• Starter : recoil starter
• Pulling force max : 12kN at 0,6km/h
• Pulling speed max : 3kN at 2,1km/h
• Capstan pulley : dia 220mm
• L x l x h : 1330x1080x815mm
• Weight : 350kg

DATASHEET

Download and print datasheet (831ko)

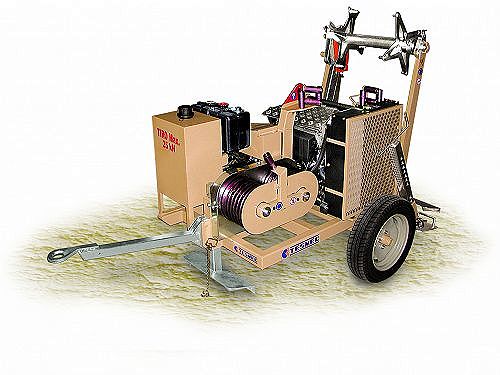

Hydraulic winch 25kN TESM-ARS301

Specifications

Hydraulic winch
• Diesel engine, 4 cycles, water cooled
• Power : 25kW (34CH)
• Starter : electrical
• Pulling force max : 25kN at 1,4km/h
• Pulling speed max : 10kN at 3,5km/h
• Capstan pulley : dia 250mm
• L x l x h : 1690x1400x1600mm
• Weight : 820kg
+ Programming and control system during stringing operation
+ Dynamometer with setting and automatic control of pulling

DATASHEET

Download and print datasheet (1074ko)

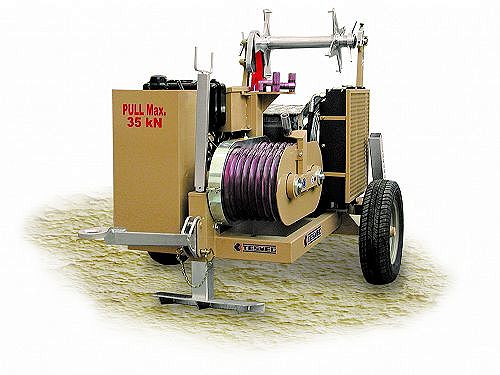

Hydraulic winch 35kN TESM-ARS403

Specifications

Hydraulic winch
• Diesel engine, 4 cycles, water cooled
• Power : 25kW (34CH)
• Starter : electrical
• Pulling force max : 35kN at 1,2km/h
• Pulling speed max : 12kN at 3,6km/h
• Capstan pulley : dia 325mm
• L x l x h : 1900x1490x1600mm
• Weight : 980kg
+ Programming and control system during stringing operation
+ Dynamometer with setting and automatic control of pulling

DATASHEET

Download and print datasheet (1046ko)

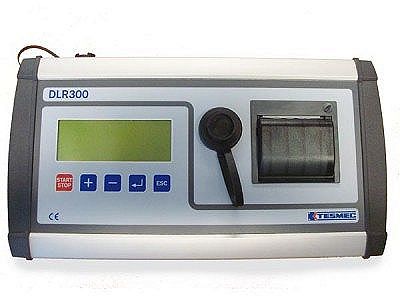

Electronic recorder TESM-DLR300

Specifications

Electronic pull and speed recorder
• Voltage : 10-28V DC
• Screen : display of 2 rows with 16 digits
• Recorded data :
- Date and time
- Pulling force max
- Force de traction / limite programmée
- Pulling force / preset limit
- Stringing length
• L x l x h : 345x200x65mm
• Masse : 1,5kg

DATASHEET

Download and print datasheet (679ko)

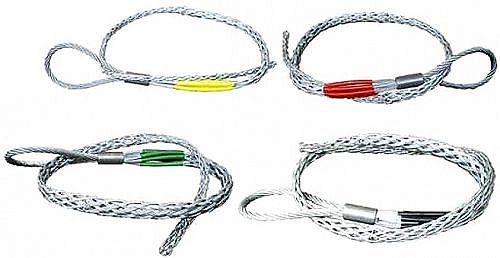

Head mesh sock joints TESM-GCT

Specifications

Single and double head sock joints
• Single head mesh sock joints : for pulling conductors from a wire
• Double head mesh sock joints : for pulling conductors from another conductor
They consist of variable pitch steel wires

DATASHEET

Download and print datasheet (1303ko)

Pulling cable clamp UPK

Specifications

Cable clamp Pfisterer
HPS is an authorized distributor for the sale and maintenance of cable clamp
• Type : UPK
• Body clamp and wedges in forged aluminium
• Body clamp with impact point
• Wedges with pre-tensioning and disassembly screws

DATASHEET

Download and print datasheet (250ko)

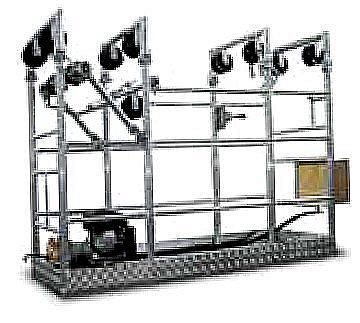

Inspection trolleys TESM-CR

Specifications

Power line trolleys
• Made of light aluminium alloy
• Equipped with crossing system (spacers and insulators)
• Secured by a parking brake
• Metric meter device

DATASHEET

Download and print datasheet (693ko)

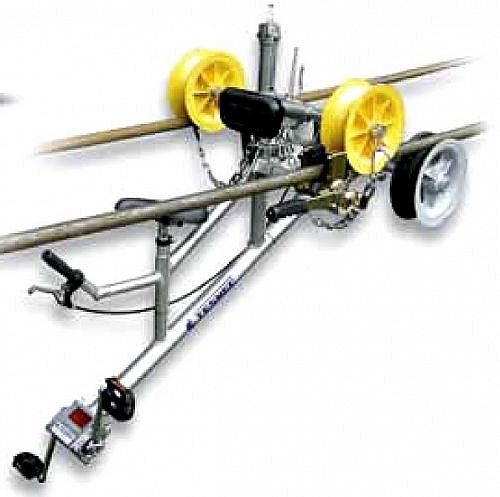

Overhead lines bicycles HTB TESM-BI

Specifications

Overhead lines bicycles
• Made of light alloy
• Equipped with disc brake
• Secured by safety jaw brake
• Metric meter device

DATASHEET

Download and print datasheet (1120ko)

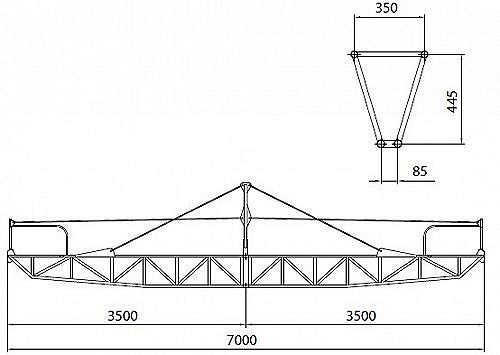

Working platforms TESM-PLL

Specifications

Working platforms
• Made of light alloy
• Trapezoidal section for a good rigidity

DATASHEET

Download and print datasheet (1023ko)

Light aluminium climbing ladders TESM-SCP

Specifications

Climbing ladders
• Made of light alloy
• Designed for climbing circular or polygonal section poles
• They are assembled from different sections
• Anti-slippery rungs
• Equipped with special track for the anti-fall device TESM-SDA

DATASHEET

Download and print datasheet (1170ko)

Aerial ladders TESM-SCS and TESM-SCA

Specifications

Suspension ladders TESM-SCS and anchoring TESM-SCA
• Made of light alloy
• Designed for suspension works
• Equipped with steel supporting hook
• Anti-slippery rungs
• With special track for the anti-fall device TESM-SDA

DATASHEET

Download and print datasheet (883ko)

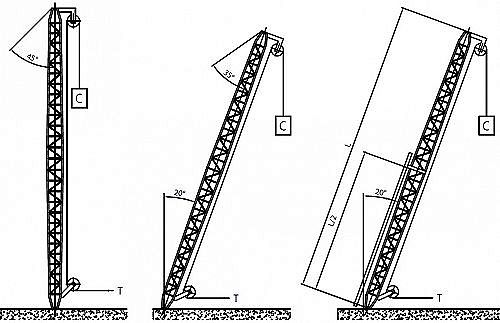

Derricks TESM-FAL

Specifications

Light alloy derricks
• Made of light alloy r
• Designed for installation of vertical structures
• Available in sections of different lengths
• The derricks have swivel head and swivel base

DATASHEET

Download and print datasheet (483ko)
