Tools for cables cutting

Find here all tools for cable cutting.

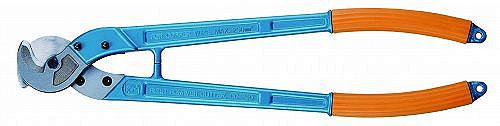

Mechanical cable cutter CC-250

Specifications

Scisor type cable cutter
• Cutting diameter : 30mm
• Cutting capacity Cu, Al : 240mm²
• Length : 600mm
• Weight : 1,5kg

DATASHEET

Download and print datasheet (700ko)

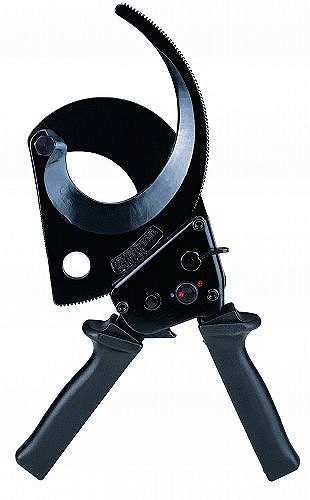

Mechanical cable cutter RCC-325PH

Specifications

Ratchet cable cutter
• Cutting diameter : 40mm
• Cutting capacity Cu, Al : 380mm²
• Length : 290mm
• Weight : 1,0kg

DATASHEET

Download and print datasheet (700ko)

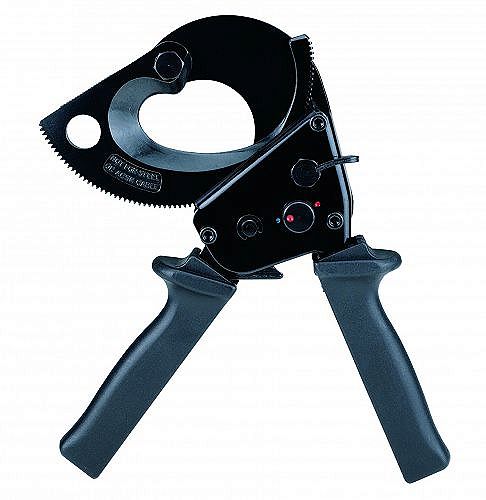

Mechanical cable cutter RCC-500PH

Specifications

Ratchet cable cutter
• Cutting diameter : 50mm
• Cutting capacity Cu, Al : 500mm²
• Length : 350mm
• Weight : 1,3kg

DATASHEET

Download and print datasheet (700ko)

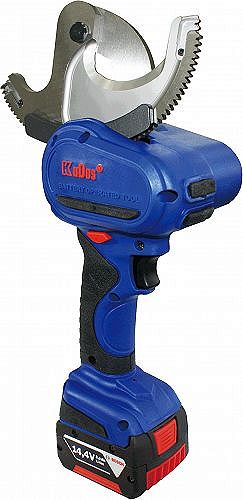

Electromechanical rack type cable cutter KC-54

Specifications

Battery operated rack type cutter Ø54mm
• Cutting diameter : 54mm
• Cutting capacity sectoral : 47mm (3x150mm²)
• Cutting capacity ACSR : 19mm (120mm²)
• Control : advance button + lever forward/backward
• L x l x h : 390x195x105mm
• Weight : 3,2kg
+ 2 batteries 14,4V 3Ah Lion
+ Charger 30 min
+ Plastic carrying case

DATASHEET

Download and print datasheet (1443ko)

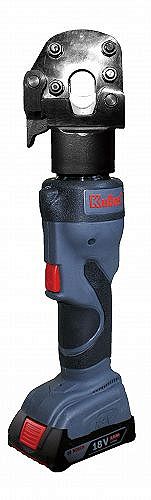

Electrohydraulic cable cutter K-S24

Specifications

Battery operated cable cutter Ø24mm
• Cutting diameter : 24mm
• Force : 78kN
• Cutting capacity Cu, Al, ACSR : 24mm
• Cutting capacity soft steel cable : 20mm
• Control : cutting button + retract button
• L x l x h : 390x75x112mm
• Weight : 4,1kg
+ 2 batteries 18V 2Ah Lion
+ Charger 20 min
+ Plastic carrying case

DATASHEET

Download and print datasheet (1563ko)

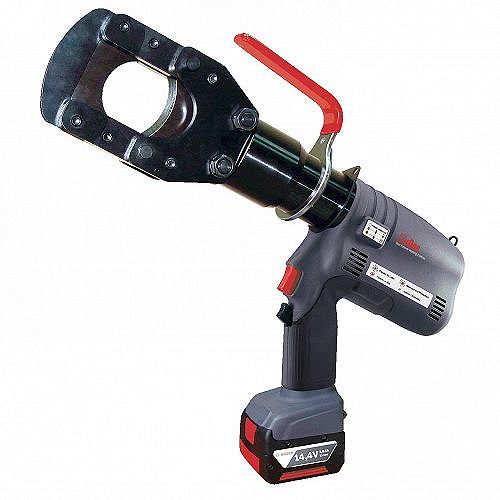

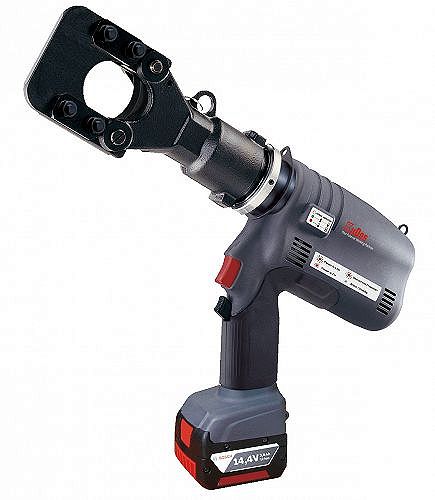

Electrohydraulic cable cutter LEC-S45

Specifications

Battery operated cable cutter Ø45mm
• Cutting diameter : 45mm
• Force : 96kN
• Cutting capacity Cu, Al, ACSR : 45mm
• Cutting capacity soft steel cable : 22mm
• Control : cutting button + retract button
• L x l x h : 445x310x85mm
• Weight : 7,0kg
+ 2 batteries 14,4V 3Ah Lion
+ Charger 30 min
+ Plastic carrying case

DATASHEET

Download and print datasheet (1072ko)

Electrohydraulic cable cutter LEC-S55

Specifications

Battery operated cable cutter Ø55mm
• Cutting diameter : 55mm
• Force : 125kN
• Cutting capacity Cu, Al, ACSR : 54mm
• Cutting capacity soft steel cable : 22mm
• Control : cutting button + retract button
• L x l x h : 479x310x85mm
• Weight : 9,2kg
+ 2 batteries 14,4V 3Ah Lion
+ Charger 30 min
+ Plastic carrying case

DATASHEET

Download and print datasheet (1152ko)

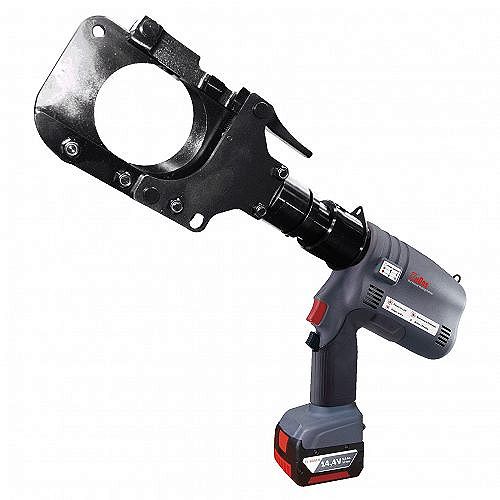

Electrohydraulic cable cutter LEC-C85

Specifications

Battery operated cable cutter Ø85mm
• Cutting diameter : 85mm
• Force : 56kN
• Cutting capacity Cu, Al : 85mm
• Control : cutting button + retract button
• L x l x h : 500x310x85mm
• Weight : 8,0kg
+ 2 batteries 14,4V 3Ah Lion
+ Charger 30 min
+ Plastic carrying case

DATASHEET

Download and print datasheet (1129ko)

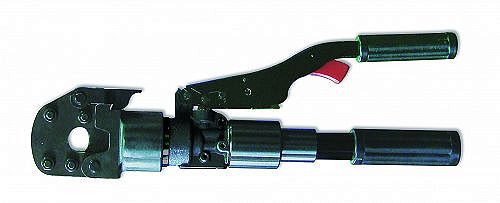

Hand operated hydraulic cable cutter S24

Specifications

Cable cutter double speed compact
• Cutting diameter : 24mm
• Force : 78kN
• Cutting capacity Cu, Al, ACSR : 24mm
• Cutting capacity soft steel cable : 20mm
• Length : 435mm
• Weight : 4,2kg
+ Equipped with one spare blade
+ Canvas bag

DATASHEET

Download and print datasheet (1025ko)

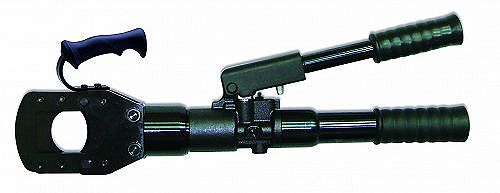

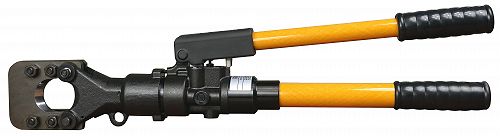

Hand operated hydraulic cable cutter HYSC-45

Specifications

Double speed compact tool
• Cutting diameter : 45mm
• Force : 95kN
• Cutting capacity Cu, Al, ACSR : 40mm
• Cutting capacity soft steel cable : 22mm
• Length : 695mm
• Weight : 6,8kg
+ Canvas bag

DATASHEET

Download and print datasheet (873ko)

Hand operated hydraulic cable cutter S55

Specifications

Powerful cable cutter
• Cutting diameter : 55mm
• Force : 125kN
• Cutting capacity Cu, Al, ACSR : 54mm
• Cutting capacity soft steel cable : 22mm
• Length : 635mm
• Weight : 10,3kg
+ Canvas bag

DATASHEET

Download and print datasheet (1175ko)

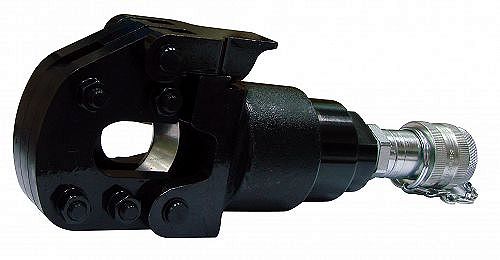

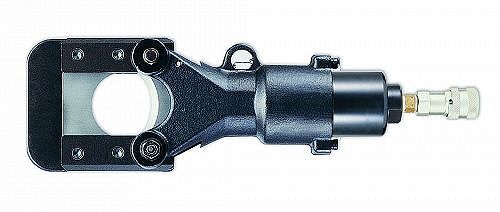

Connectable hydraulic cable cutter S24HE

Specifications

Hydraulic cable cutter 700 bars
• Operating pressure : 70MPa (700 bars)
• Cutting diameter : 24mm
• Force : 78kN
• Cutting capacity Cu, Al, ACSR : 24mm
• Cutting capacity soft steel cable : 20mm
• Length : 170mm
• Weight : 3,0kg
+ Canvas bag

DATASHEET

Download and print datasheet (1025ko)

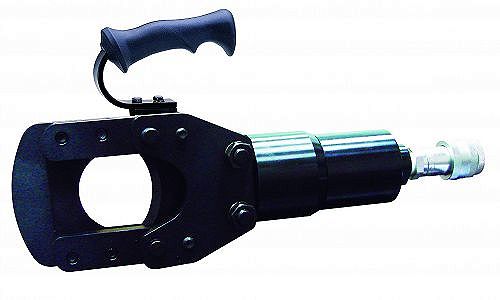

Connectable hydraulic cable cutter HYSC-45HE

Specifications

Hydraulic cable cutter 700 bars
• Operating pressure : 70MPa (700 bars)
• Cutting diameter : 45mm
• Force : 95kN
• Cutting capacity Cu, Al, ACSR : 40mm
• Cutting capacity soft steel cable : 22mm
• Length : 350mm
• Weight : 4,5kg
+ Canvas bag

DATASHEET

Download and print datasheet (1150ko)

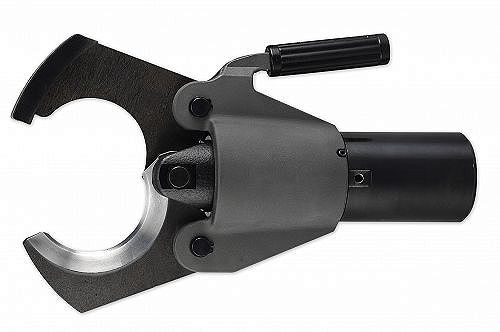

Connectable hydraulic cable cutter S55HE

Specifications

Hydraulic cable cutter 700 bars
• Operating pressure : 70MPa (700 bars)
• Cutting diameter : 55mm
• Force : 125kN
• Cutting capacity Cu, Al, ACSR : 54mm
• Cutting capacity soft steel cable : 22mm
• Length : 365mm
• Weight : 7,2kg
+ Canvas bag

DATASHEET

Download and print datasheet (1175ko)

Connectable hydraulic cable cutter HYCC-096S

Specifications

Hydraulic cable cutter 700 bars
• Operating pressure : 70MPa (700 bars)
• Cutting diameter : 95mm
• Force : 132kN
• Cutting capacity Cu, Al : 95mm
• L x l x h : 400x250x150mm
• Weight : 8,1kg
+ Canvas bag

DATASHEET

Download and print datasheet (1209ko)

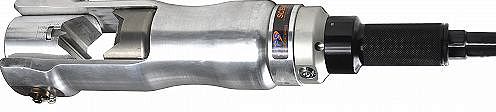

Sleeves splitter HG-CMH26L

Specifications

Sleeves splitter tool 700 bars double acting
• Operating pressure : 70MPa (700 bars)
• Force : 260kN (26 tonnes)
• Knives : Cutting + splitting (2 actions)
• Capacity max : 612mm²
• Handle : rotary proportional distributor (advance, hold, retract)
• L x l x h : 620x160x110mm
• Weight : 12kg
+ Control by a very precise hydraulic handle

DATASHEET

Download and print datasheet (839ko)

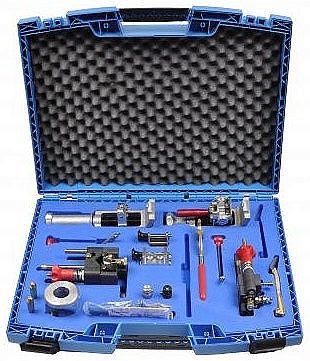

Cable preparation kit ALR-CNPT630-1MVNG

Specifications

Cable preparation from 50 to 630 mm²
• Application : MV kit
• Diameter capacity : Ø16 to 58mm
• Section capacity : 50 to 630mm²
• L x l x h : 575x470x145mm
• Weight : 10kg
+ Main tools : MF1+, MF2, FENTE, TC630,...

DATASHEET

Download and print datasheet (1116ko)

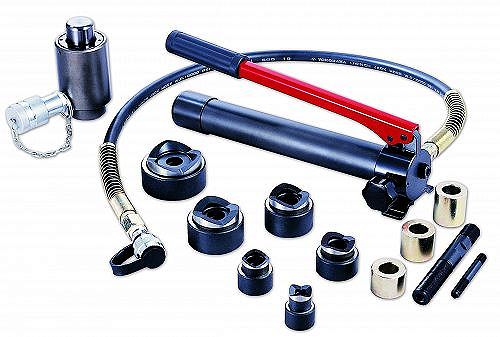

Pulling puncher PNST-10M

Specifications

Punching tool with hand pump
• Operating pressure : 59MPa (590 bars)
• Force : 125kN
• Punches : round diameters 16-20-25-32-40-50mm
• Pulling studs : 3/4 and 3/8in.
• Capacity max : Ø100mm - th.3,2mm in soft steel
• Weight : 7,6kg
+ Plastic carrying case

DATASHEET

Download and print datasheet (2036ko)

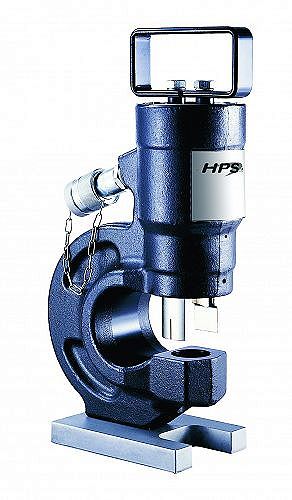

C head puncher SH-70A

Specifications

Connectable hydraulic puncher 700 bars single acting
• Operating pressure : 70MPa (700 bars)
• Force : 305kN (30 tonnes)
• Punches : round diameters 10,5-13,5-17,5-20,5mm
• Capacity max : dia. 20,5mm thickness 10mm in soft steel
• C head : 70mm to axis
• L x l x h : 220x100x375mm
• Weight : 13kg

DATASHEET

Download and print datasheet (1439ko)

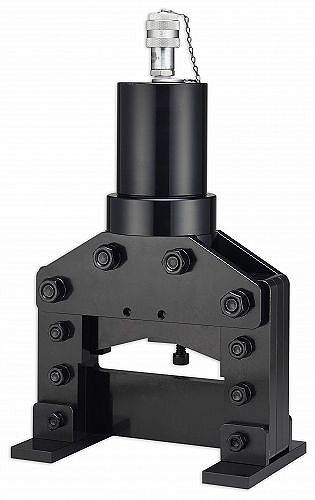

Portable hydraulic shear HDBC-16

Specifications

Connectable hydraulic shear 700 bars single acting
• Operating pressure : 70MPa (700 bars)
• Force : 264kN (26 tonnes)
• Shearing width max : 160mm
• Thickness max : 15mm
• Material : Aluminium & Copper
• L x l x h : height 458mm
• Weight : 28kg
+ Vertical stand

DATASHEET

Download and print datasheet (728ko)
