Connectors crimping

Find here all crimping tools.

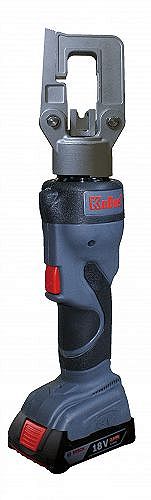

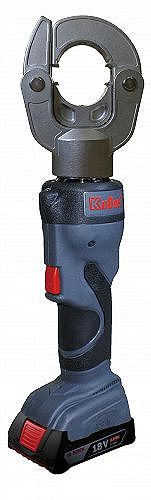

Electrohydraulic crimping tool K-240

Specifications

Battery operated crimping tool 52kN
• Force : 52kN
• Dies : D55
• Crimping capacity : 185mm²
• Control : crimp button + retract button
• L x l x h : 354x75x112mm
• Weight : 2,7kg
+ 2 batteries 18V 2Ah Lion
+ Charger 20 min
+ Plastic carrying case

DATASHEET

Download and print datasheet (1176ko)

Electrohydraulic crimping tool K-PH240

Specifications

Battery operated crimping tool 61kN
• Force : 61kN
• Dies : C6
• Crimping capacity : 240mm²
• Control : crimp button + retract button
• L x l x h : 359x75x112mm
• Weight : 3,3kg
+ 2 batteries 18V 2Ah Lion
+ Charger 20 min
+ Plastic carrying case

DATASHEET

Download and print datasheet (1264ko)

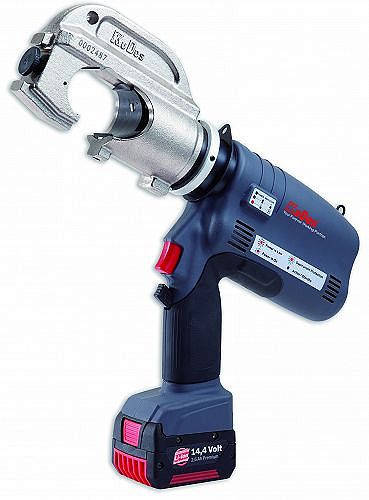

Electrohydraulic crimping tool LEC-32

Specifications

Battery operated crimping tool 125kN
• Force : 125kN
• Dies : C12
• Crimping capacity : 400mm²
• Control : crimp button + retract button
• L x l x h : 420x310x85mm
• Weight : 7,0kg
+ 2 batteries 14,4V 3Ah Lion
+ Charger 30 min
+ Plastic carrying case

DATASHEET

Download and print datasheet (1193ko)

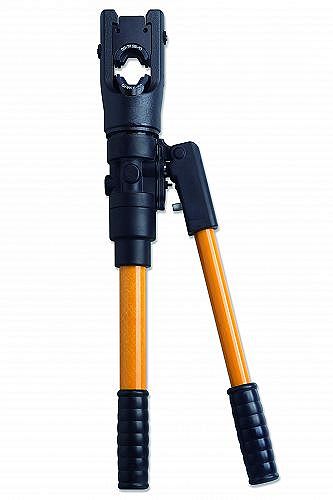

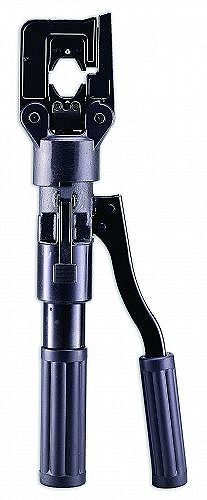

Hand operated hydraulic crimping tool HYCP-240

Specifications

Hand operated crimping tool 52kN
• Force : 52kN
• Dies : D55
• Crimping capacity : 185mm²
• Control : handle and release lever
• L x l x h : 377x60x130mmmm
• Weight : 2,4kg
+ Plastic carrying case

DATASHEET

Download and print datasheet (1367ko)

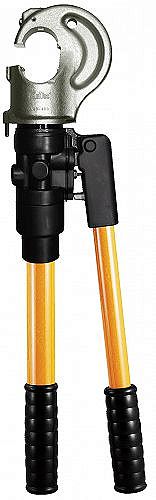

Hand operated hydraulic crimping tool PH-240

Specifications

Hand operated crimping tool 61kN
• Force : 61kN
• Dies : C6
• Crimping capacity : 240mm²
• Control : trigger + pressing handles
• L x l x h : 425x60x130mm
• Weight :3,2kg
+ Plastic carrying case

DATASHEET

Download and print datasheet (1259ko)

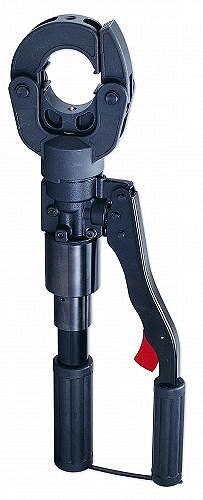

Hand operated hydraulic crimping tool UB-400

Specifications

Hand operated crimping tool 125kN
• Force : 125kN
• Dies : C12
• Crimping capacity : 400mm²
• Control : rotation + pressing handles
• L x l x h : 600x75x130mm
• Weight : 6,8kg
+ Plastic carrying case

DATASHEET

Download and print datasheet (1371ko)

Hand operated hydraulic crimping tool UCP-2712

Specifications

Hand operated crimping tool 125kN
• Force : 125kN
• Dies : U13
• Crimping capacity : 400mm²
• Control : rotation + pressing handles
• L x l x h : 590x75x145mm
• Weight : 6,2kg
+ Plastic carrying case

DATASHEET

Download and print datasheet (1440ko)

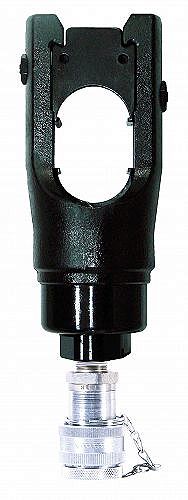

Connectable hydraulic crimping tool HYCP-240HE

Specifications

Hydraulic crimping tool 700 bars single acting 52kN
• Operating pressure : 70MPa (700 bars)
• Force : 52kN
• Dies : D55
• Crimping capacity : 185mm²
• L x l x h : 265x60x85mm
• Weight : 2,1kg
+ Plastic carrying case

DATASHEET

Download and print datasheet (1367ko)

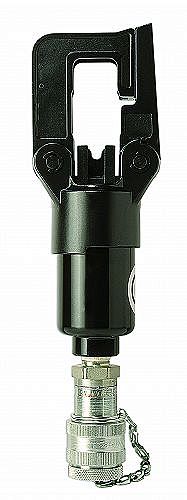

Connectable hydraulic crimping tool PH-240HE

Specifications

Hydraulic crimping tool 700 bars single acting 61kN
• Operating pressure : 70MPa (700 bars)
• Force : 61kN
• Dies : C6
• Crimping capacity : 240mm²
• L x l x h : 210x60x100mm
• Weight : 2,7kg
+ Plastic carrying case

DATASHEET

Download and print datasheet (1259ko)

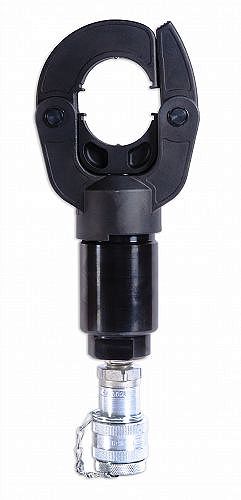

Connectable hydraulic crimping tool UB-400HE

Specifications

Hydraulic crimping tool 700 bars single acting 125kN
• Operating pressure : 70MPa (700 bars)
• Force : 125kN
• Dies : C12
• Crimping capacity : 400mm²
• L x l x h : 260x75x130mm
• Weight : 4,6kg
+ Plastic carrying case

DATASHEET

Download and print datasheet (1371ko)

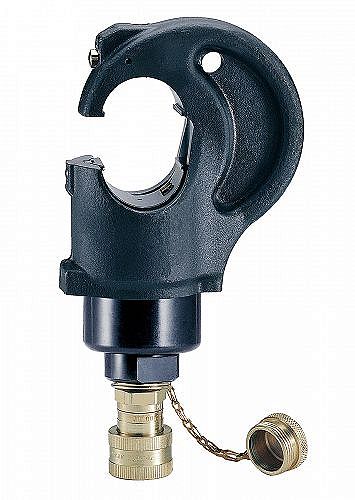

Connectable hydraulic crimping tool UCP-2712HE

Specifications

Hydraulic crimping tool 700 bars single acting 125kN
• Operating pressure : 70MPa (700 bars)
• Force : 125kN
• Dies : U13
• Crimping capacity : 400mm²
• L x l x h : 250x75x95mm
• Weight : 4,0kg
+ Plastic carrying case

DATASHEET

Download and print datasheet (1440ko)

Connectable hydraulic crimping tool HG-20TL

Specifications

Hydraulic crimping tool 700 bars single acting 200kN
• Operating pressure : 70MPa (700 bars)
• Force : 200kN
• Dies : U21 & RU21
• Crimping capacity : 630mm²
• L x l x h : 357x120x120mm
• Weight : 6,2kg
+ Carrying case

DATASHEET

Download and print datasheet (651ko)

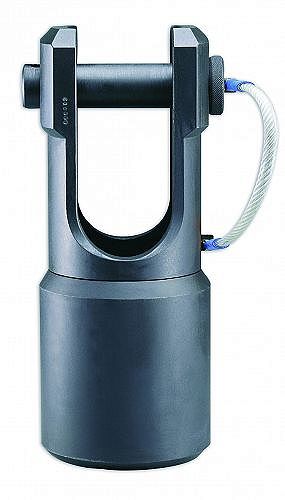

Connectable hydraulic crimping tool HYCP-451000HE

Specifications

Hydraulic crimping tool 700 bars single acting 440kN
• Operating pressure : 70MPa (700 bars)
• Force : 440kN
• Dies : H45
• Crimping capacity : 1000mm²
• L x l x h : 150x150x285mm
• Weight : 11,6kg
+ Plastic carrying case

DATASHEET

Download and print datasheet (1023ko)

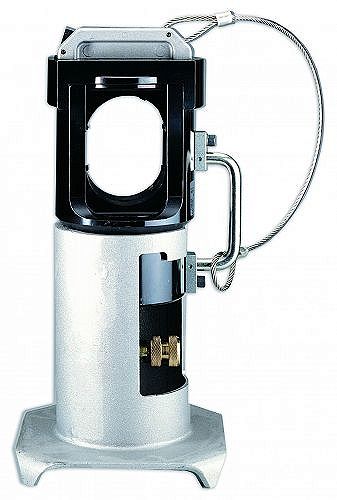

Connectable hydraulic crimping tool HYCP-60ST

Specifications

Hydraulic crimping tool 700 bars single acting 540kN
• Operating pressure : 70MPa (700 bars)
• Force : 540kN
• Dies : 6E
• Crimping capacity : 630mm²
• L x l x h : 260x260x446mm
• Weight : 22kg
+ Aluminium vertical stand
+ Metal carrying case

DATASHEET

Download and print datasheet (1506ko)

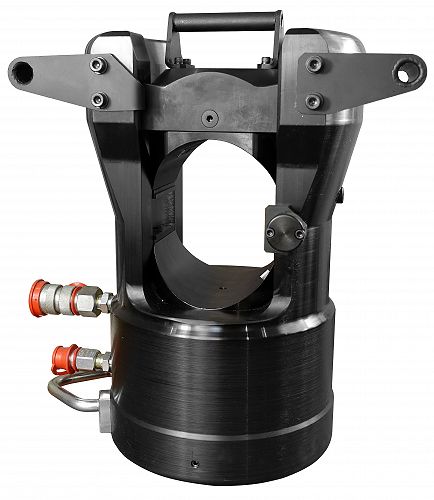

Connectable hydraulic crimping tool DB801

Specifications

Hydraulic crimping tool 700 bars double acting
• Operating pressure : 70MPa (700 bars)
• Force : 800kN (80 tonnes)
• Dies : 8E
• Crimping capacity : 570mm²
• Control : hydraulic distributor (advance, hold, retract)
• L x l x h : 222x200x290mm
• Weight : 27kg
+ Equipped with a cycle counter
+ Wooden carrying case

DATASHEET

Download and print datasheet (1095ko)

Connectable hydraulic crimping tool SR-100C

Specifications

Hydraulic crimping tool 700 bars double acting
• Operating pressure : 70MPa (700 bars)
• Force : 1000kN (100 tonnes)
• Dies : 10E
• Crimping capacity : 612mm²
• Control : hydraulic distributor (advance, hold, retract)
• L x l x h : 250x200x365mm
• Weight : 34kg
+ Equipped with a cycle counter
+ Wooden carrying case

DATASHEET

Download and print datasheet (1121ko)

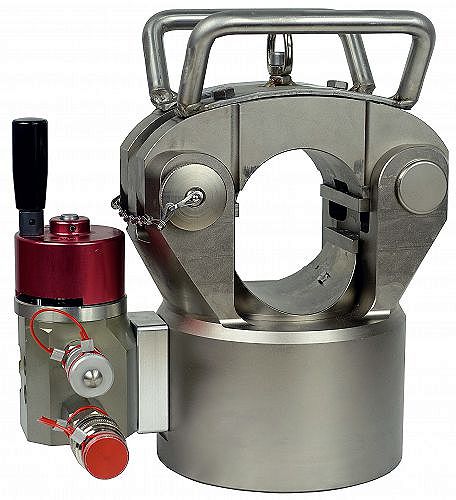

Connectable hydraulic crimping tool PRT510

Specifications

Hydraulic crimping tool 700 bars double acting
• Operating pressure : 70MPa (700 bars)
• Force : 1000kN (100 tonnes)
• Dies : 10E(8E or 12T with adapters)
• Crimping capacity : 1144mm²
• Control : hydraulic distributor (advance, hold, retract)
• L x l x h : 480x260x390mm
• Weight : 32kg
+ Aluminium tubular frame
+ Equipped with a cycle counter
+ Wooden carrying case

DATASHEET

Download and print datasheet (1041ko)

Connectable hydraulic crimping tool DB2000

Specifications

Hydraulic crimping tool 700 bars double acting
• Operating pressure : 70MPa (700 bars)
• Force : 2000kN (200 tonnes)
• Dies : 20E
• Crimping capacity : 1600mm²
• L x l x h : 380x240x445mm
• Weight : 78kg
+ Equipped with a cycle counter
+ Wooden carrying case

DATASHEET

Download and print datasheet (869ko)
