Pompes hydrauliques

Find here all pompes hydrauliques pour outils de sertissage.

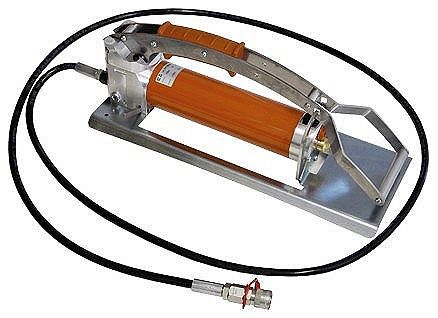

700 bars hydraulic foot pump ENE-P392FP

Specifications

700 bars hydraulic pump single acting
• Nominal pressure : 70MPa (700 bars)
• Low pressure flow rate : 18cm3/stroke
• High pressure flow rate : 2cm3/stroke
• Oil tank volume : 1,2L
• L x l x h : 545x212x198mm
• Weight : 10,3kg
+ Metal carrying case

DATASHEET

Download and print datasheet (959ko)

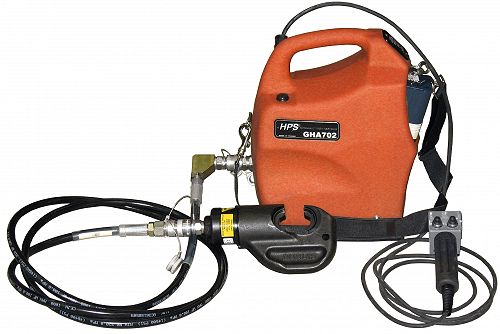

700 bars battery operated hydraulic pump DUB-GHA702

Specifications

700 bars hydraulic pump single acting
• Electrical motor 24V DC
• Power : 400W
• Control : wire remote control (advance, hold, retract)
• Nominal pressure : 70MPa (700 bars)
• Low pressure flow rate : 1,2L/min
• High pressure flow rate : 0,2L/min
• Oil tank volume : 0,75L
• L x l x h : 340x180x330mm
• Weight : 8,8kg
+ 1 battery 24V 3,1Ah NiMH
+ Charger 30 min
+ Wooden carrying case

DATASHEET

Download and print datasheet (1382ko)

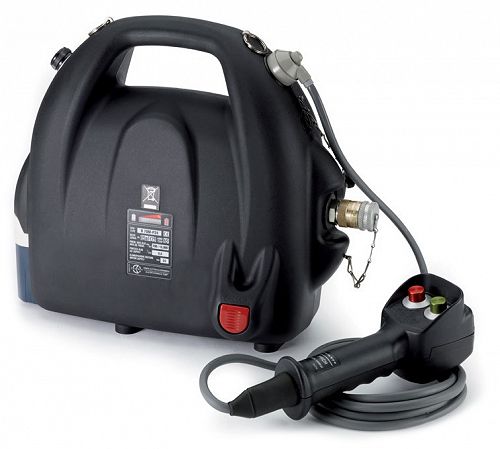

700 bars battery operated hydraulic pump GSHB12

Specifications

700 bars hydraulic pump single acting
• Electrical motor 24V DC
• Power : 24V - 30A
• Control : wire remote control (advance, hold, retract)
• Nominal pressure : 70MPa (700 bars)
• Pressure flow rate : 0,6L/min
• Oil tank volume : 1L
• L x l x h : 390x163x323mm
• Weight : 9,2kg
+ 1 battery 24V 3,1Ah NiMH
+ Charger 30 min
+ Canvas bag

DATASHEET

Download and print datasheet (403ko)

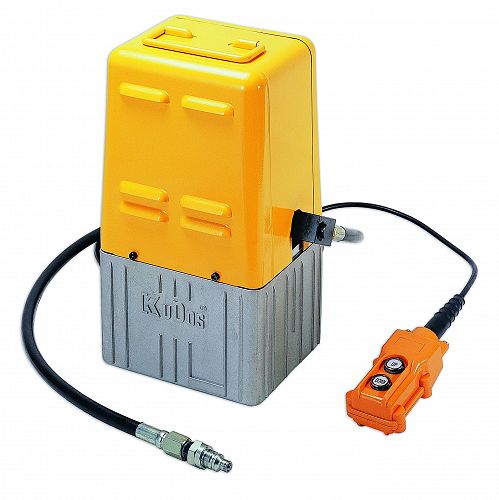

700 bars electrical motor hydraulic pump EP-30S

Specifications

700 bars hydraulic pump single acting
• Industrial electrical motor
• Energy : 220V AC single phase
• Power : 350W
• Control : wire remote control 2m (advance, hold, retract)
• Nominal pressure : 70MPa (700 bars)
• Low pressure flow rate : 2,6L/min
• High pressure flow rate : 0,3L/min
• Oil tank volume : 3L
• L x l x h : 200x170x375mm
• Weight : 18kg

DATASHEET

Download and print datasheet (1280ko)

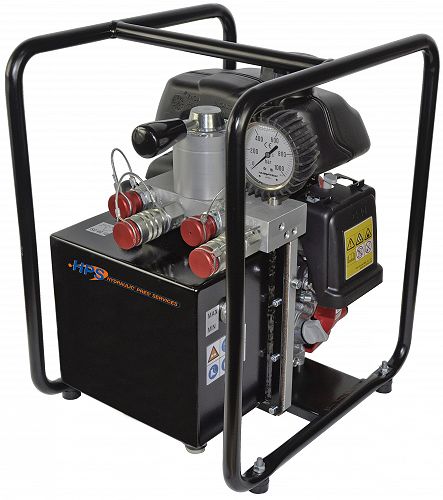

700 bars gas engine hydraulic pump PMP1221

Specifications

700 bars hydraulic pump single acting
• Gas, single cylinder, 4 cycles, air cooled
• Fuel : unleaded petrol
• Power : 1,8 kW (2,5CH)
• Starter : recoil starter
• Control : hydraulic distributor (advance, hold, retract)
• Nominal pressure : 70MPa (700 bars)
• Low pressure flow rate : 2,35L/min
• High pressure flow rate : 0,55L/min
• Oil tank volume : 2,1L
• L x l x h : 337x280x397mm
• Weight : 16,6kg
+ Manometer with direct reading
+ Wooden carrying case

DATASHEET

Download and print datasheet (914ko)

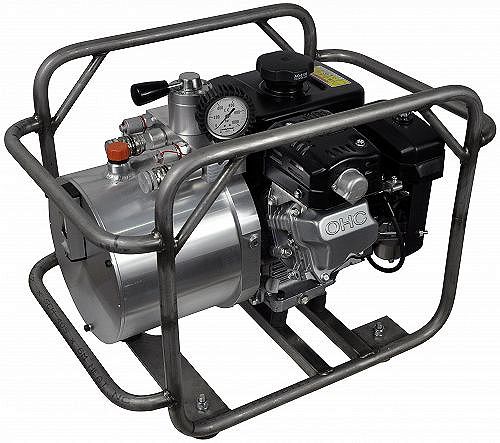

700 bars gas engine hydraulic pump GSHE35

Specifications

700 bars hydraulic pump double acting
• Gas, single cylinder, 4 cycles, air cooled
• Fuel : unleaded petrol
• Power : 4,2kW (5,7CH)
• Starter : recoil starter
• Control : hydraulic distributor (advance, hold, retract)
• Nominal pressure : 70MPa (700 bars)
• Low pressure flow rate : 7,5L/min
• High pressure flow rate : 1,2L/min
• Oil tank volume : 8L (exists also 5,10,20L)
• L x l x h : 770x410x540mm
• Weight : 47kg
+ Manometer with direct reading
+ Wooden carrying case

DATASHEET

Download and print datasheet (1286ko)

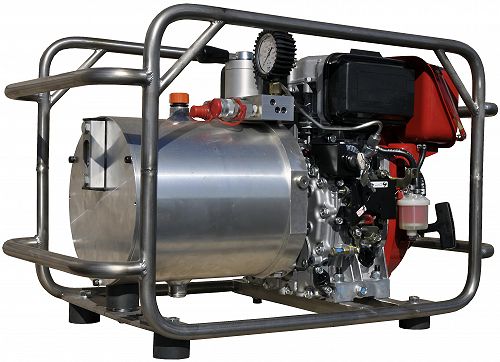

700 bars diesel engine hydraulic pump GSHD48

Specifications

700 bars hydraulic pump double acting
"Specialy designed for live line works"
• Diesel, single cylinder, 4 cycles, air cooled
• Fuel : gazole
• Power : 3,5kW (4,8 CH)
• Starter : electrical/recoil starter
• Control : hydraulic distributor (advance, hold, retract)
• Nominal pressure : 70MPa (700 bars)
• Low pressure flow rate : 7,5L/min
• High pressure flow rate : 1,2L/min
• Oil tank volume : 8L (exists also 5,10,20L)
• L x l x h : 770x410x540mm
• Weight : 78kg
+ Manometer with direct reading
+ Wooden carrying case

DATASHEET

Download and print datasheet (1359ko)

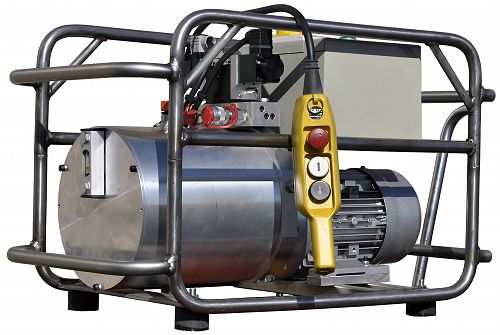

700 bars electrical motor hydraulic pump GSHELEC

Specifications

700 bars hydraulic pump double acting
• Industrial electrical motor
• Energy : 220V AC single phase
• Power : 1.500W
• Control : wire remote control 3m (advance, hold, retract)
• Nominal pressure : 70MPa (700 bars)
• Low pressure flow rate : 7,5L/min
• High pressure flow rate : 1,2L/min
• Oil tank volume : 8L (exists also 5,10,20L)
• L x l x h : 770x410x540mm
• Weight : 57kg
+ Manometer with direct reading
+ Wooden carrying case

DATASHEET

Download and print datasheet (1418ko)

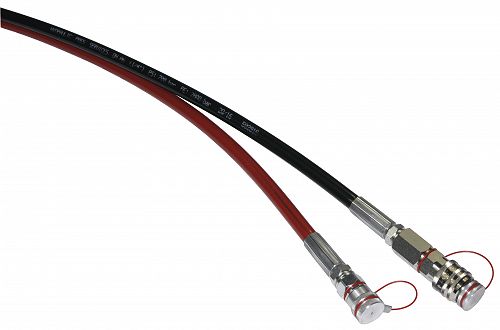

Hydraulic hoses and couplings FLE

Specifications

HPS propose hydraulic hoses manufactured on demand
• Twin hoses
• Single hoses

Hydraulic quick couplings range
• CEJN 115 : flat faces + safety ring
• CEJN 117 : locking ring
• CEJN 218 : high flow + locking ring
• Type ERDF/ENEDIS : according to standard HN 68-S-90

DATASHEET

Download and print datasheet (689ko)

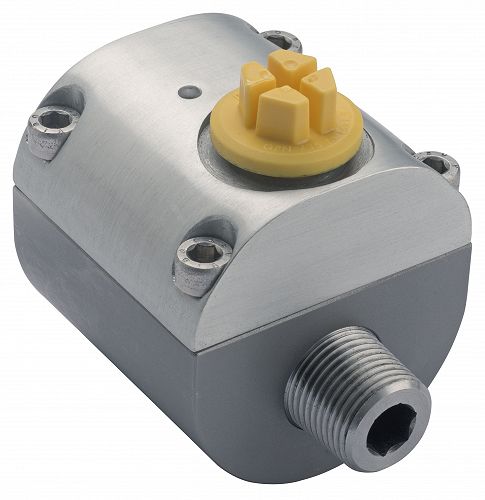

Cycle counter KCHTA10

Specifications

Counter for connectable tools 700 bars
• Nominal pressure : 70MPa (700 bars)
• Communication : indicator LED 3 colors
• Lifetime : 5 years / 50.000 cycles
• Connection micro USB to PC for data reading
• Weight : 620g

DATASHEET

Download and print datasheet (683ko)
