Worksite securing

Find here all products for worksite securing.

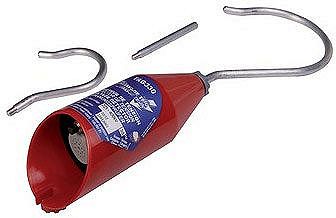

No-voltage tester FAM-T33FR

Specifications

Electronic HV no-voltage tester
• Voltage range : 63/90kV, 150kV, 225/400kV, 400/765kV
• Main frequency range : 50Hz
• Electronic : self-test device
• Signaling : 1 green LED, 3 red LED, 1 buzzer
• Power supply : alkaline battery 9 V
• L x l x h : 210x90mm
• Weight : 420g
+ Equipment : hooks dia. 60 and 120mm + straight electrode 100mm

DATASHEET

Download and print datasheet (660ko)

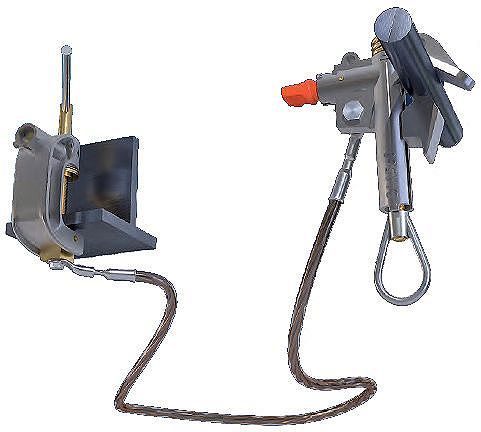

Grounding system with intercontrol SMAPE

Specifications

Assembly line clamp-cable-ground clamp with interlock mechanism
• Lightweight and compact device
• Mechanism that imposes the order of implementation
• Strong key that protects you
• Automatic control that the clamp is tightened enough

Line clamps : SA342, SA1560, SAP20120, SAF220, SAP1060, SANB2025
Ground clamps : SAGTE25, SANBCRTTS, SANB33S, SANBE2025

DATASHEET

Download and print datasheet (678ko)

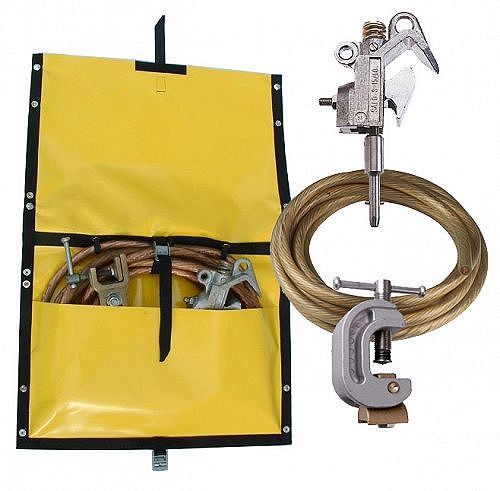

Earthing system MALT

Specifications

Earthing system line clamp-cable-ground clamp
HPS offers a range of line and ground clamps and cables
• Line and substation head clamps : S1560.., S20120.., SF220..
End fittings : ANse, Baionnette, CLoche, CRochet, HExagonal, X46 screw type

• Line and substation ground clamps : GTE25COS, NB33S, N3B8

• Cables : 35mm² green for equipotential bonding and 95 or 120 mm² for grounding

DATASHEET

Download and print datasheet (854ko)

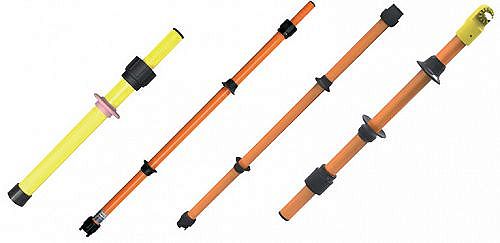

Connectable insulating sticks FAM-PRE

Specifications

Insulating sticks : heavy duty
• Fiberglass composite tube, Ø 39mm, polyurethane foam-filled (CEI 60855-1)
• Very robust can be used for grounding applications
• Longitudinal dielectric resistance 100kV/30cm
• Screw connector extremity S46
• Ribbed non-slip shaft.
• Composition
- 1 base section
- 1 or more upper sections
- 1 S46 adapter

DATASHEET

Download and print datasheet (679ko)

Connectable insulating sticks FAM-RTTE

Specifications

Connectable insulating sticks
• Fiberglass composite tube Ø 39 and 32 mm polyurethane foam-filled (CEI 60855-1)
• Dedicated to no-voltage testing
• Dielectric resistance 100kV/30cm
End fittings : Universal notched, APV 6-sided 12mm, Baïonnette, EAF 6-sided 21mm
• Composition
- 1 base section
- 1 intermediate section
- 1 upper section
• Exist also extension section to obtain the required length

DATASHEET

Download and print datasheet (269ko)

Telescopic insulating sticks FAM-TR2

Specifications

Telescopic insulating sticks
• Fiberglass composite tube Ø 48, 39 and 32mm polyurethane foam-filled (CEI 60855-1)
• Dedicated to no-voltage testing
• Dielectric resistance 100kV/30cm on upper section
End fittings : Universal notched, APV 6-sided 12mm, Baïonnette, EAF 6-sided 21mm
• Composition : according to required length

DATASHEET

Download and print datasheet (219ko)

Stick end fitting adapters ADAPT

Specifications

Stick end fitting adapters
• Allow to connect stick end fittings and existing devices
• An AFLEX range provides a flexible link.
• Stick end fittings : APV, M10, B, U, EAF, BP
• Towards : U, B, BP, APV

DATASHEET

Download and print datasheet (285ko)

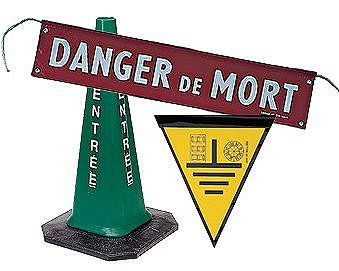

Safety signaling SIGNAL

Specifications

PVC Flags
• Flag to identify worksite grounding
Marking cone
• Green color signaling cone marked on both sides «Entrée» in white
Stake
• Fixing stake with penetration point
Nets
• Nets for creating limits of the working area
Banners
• Banners made in coated fabric with 2 attachment straps and 4 eyelets

DATASHEET

Download and print datasheet (786ko)
